Solution Summary

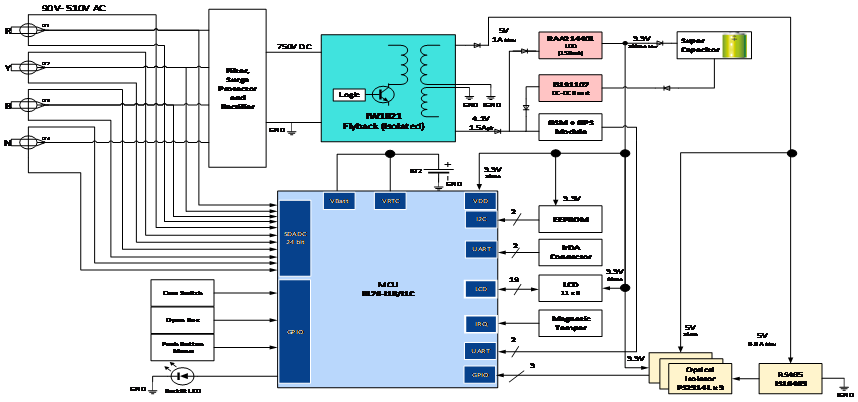

JNE's 3-Phase Smart Meter is a ready-to-use solution for smart metering using the onboard RL78/I1C-512K/100Pin MCU chip (RL78/I1C - Ultra-low Power Microcontrollers for High-end Smart Electricity Meter Market | Renesas). 3-Phase meter is designed with low currentconsumption, low cost meter and high-performance solution for 3 phase metering applications. This would be an ideal solution for advanced metering infrastructure (AMI), Peak Load Management (PLM) including meter demand response. The meter will communicate with HES through GPRS connectivity. This product is built on Renesas RL78 Group MCU which is a fully integrated system with 16bit RL78 CPU core, ultra-low power technology with high speed on chip oscillator correction function, 24-bit A/D converter, reset and supply management, battery chip data transfer controller (DTC), event link controller (ELC), 32 bit multiple-accumulator and backup function, AES function over multiple communication interface.

Features/Benefits

3 Phase 4 Wire Meter Class 1 / Class 0.5S

• Operating Voltage 110-300V (at any Channel)
• Basic current 5A / 10A ,Maximum current 60 / 120A
• Operating Frequency 50 Hz ± 10%
• LCD display with 7 digits, RTC accuracy of ± 5 PPM at 25º
• Power consumption as per IS- 16444 (3W/8VA)
• Kwh—impulse output as per IEC 52053-31
• Complying IS 15959 part-2 standard for DLMS
• Fundamental to 31st Harmonic measurement
• Bidirectional measurement & Data logging
• Tamper events detection, recording and reporting
• Event logging with active energy, voltage and current snap shots
• Load connection/disconnection through latching relays
